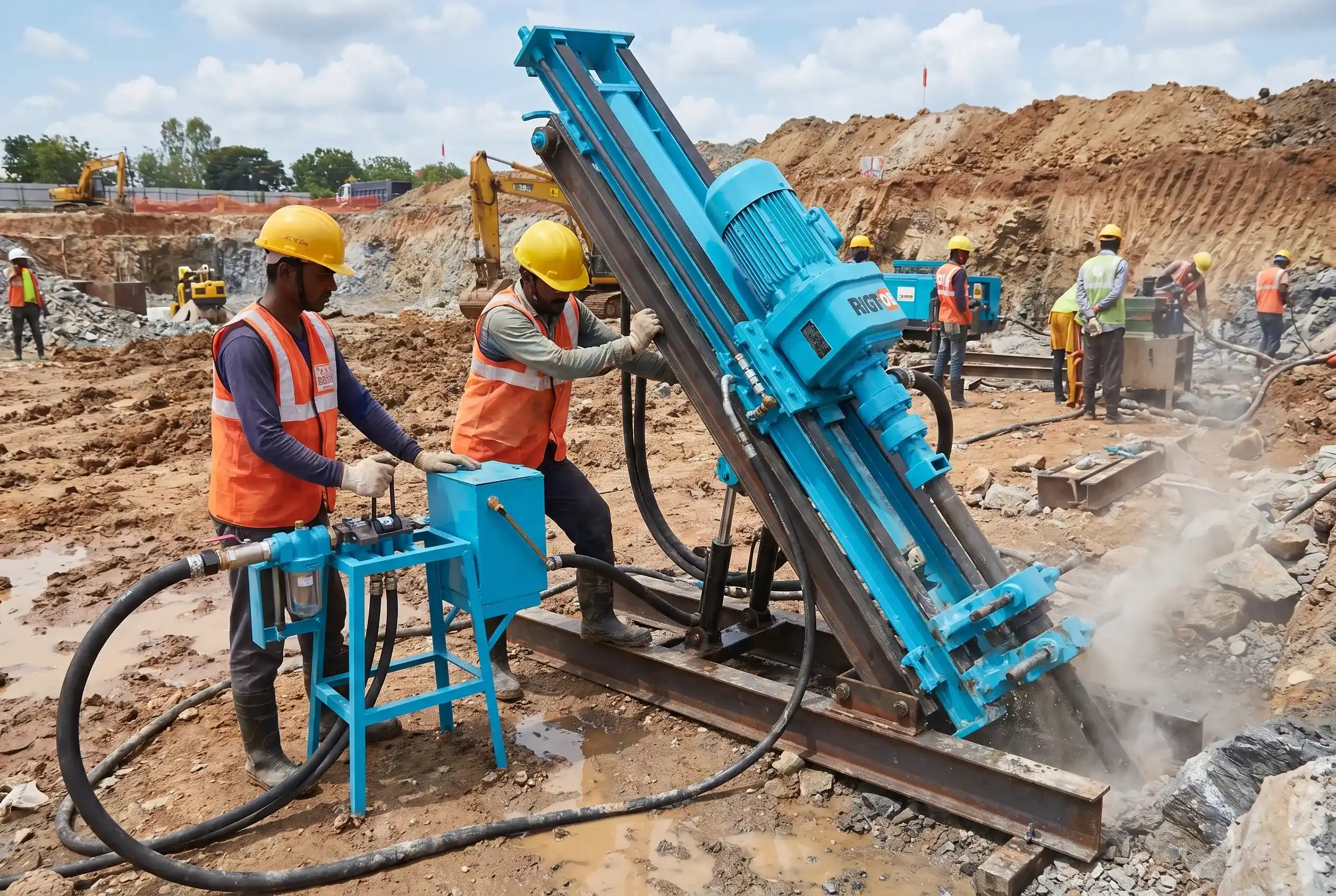

The Guide Rail Mounted Hydraulic DTH Drill Rig is a precision-controlled blast hole drilling system designed for mining, quarrying, and infrastructure excavation projects requiring high accuracy and stable drilling alignment.
It operates on a guide rail positioning system combined with a hydraulic DTH impact mechanism, ensuring straight hole drilling, reduced deviation, and efficient penetration in medium-hard to hard rock formations.
This rig is ideal for projects where drilling accuracy and consistency are more important than high mobility.
| Parameter | Specification / Range |
| Application | Mining / Quarry / Excavation |
| Drilling Method | Down-the-Hole (DTH) |
| Mounting Type | Guide rail system |
| Hole Diameter | 90 – 165 mm (model dependent) |
| Maximum Drilling Depth | Up to 30–50 m |
| Rock Formation | Medium-hard to hard rock |
| Power System | Hydraulic drive system |
| Control System | Rail-guided hydraulic control |
| Operation Type | Continuous bench drilling |
Provide your formation and core size — we will recommend the best configuration.
